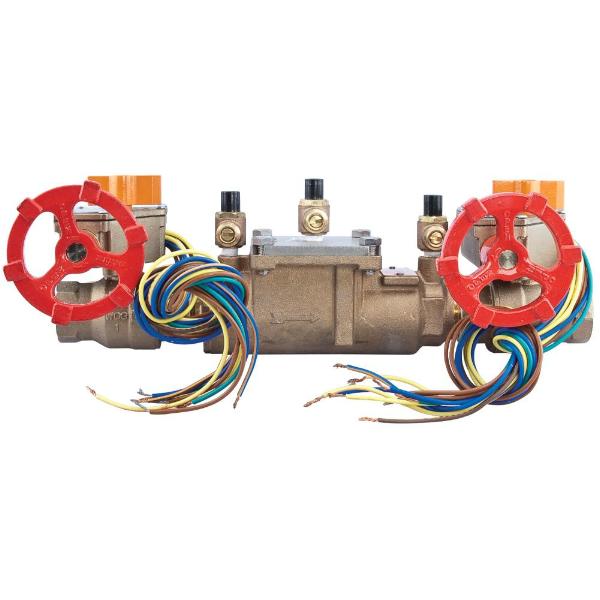

Ames 2000B-FP

Bronze Double Check Valve Assemblies with Gear Operated Slow Close Isolation Valves

Series 2000B-FP Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 2000B-FP is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements. Maximum Working Pressure: 175psi (12.06 bar).


1/2 to 2 in. (15 to 50mm)

A Double Check Valve Assembly shall be installed at each not ed lo ca tion. The assembly shall consist of two positive seating check modules with captured springs and rubber seat discs. The check module seats and seat discs shall be replaceable. Service of all internal components shall be through a single access cover secured with stainless steel bolts. The assembly shall also in clude two resilient seated gear operated slow close isolation valves and four resilient seated test cocks. The assembly shall meet the requirements of ASSE Std. 1015 and AWWA Std. C510. Approved by the Foundation for Cross-Connection Control and Hydraulic Re search at the University of Southern California. Assembly shall be an Ames Company Series 2000B-FP.
